Ceramic Injection Molding (CIM)

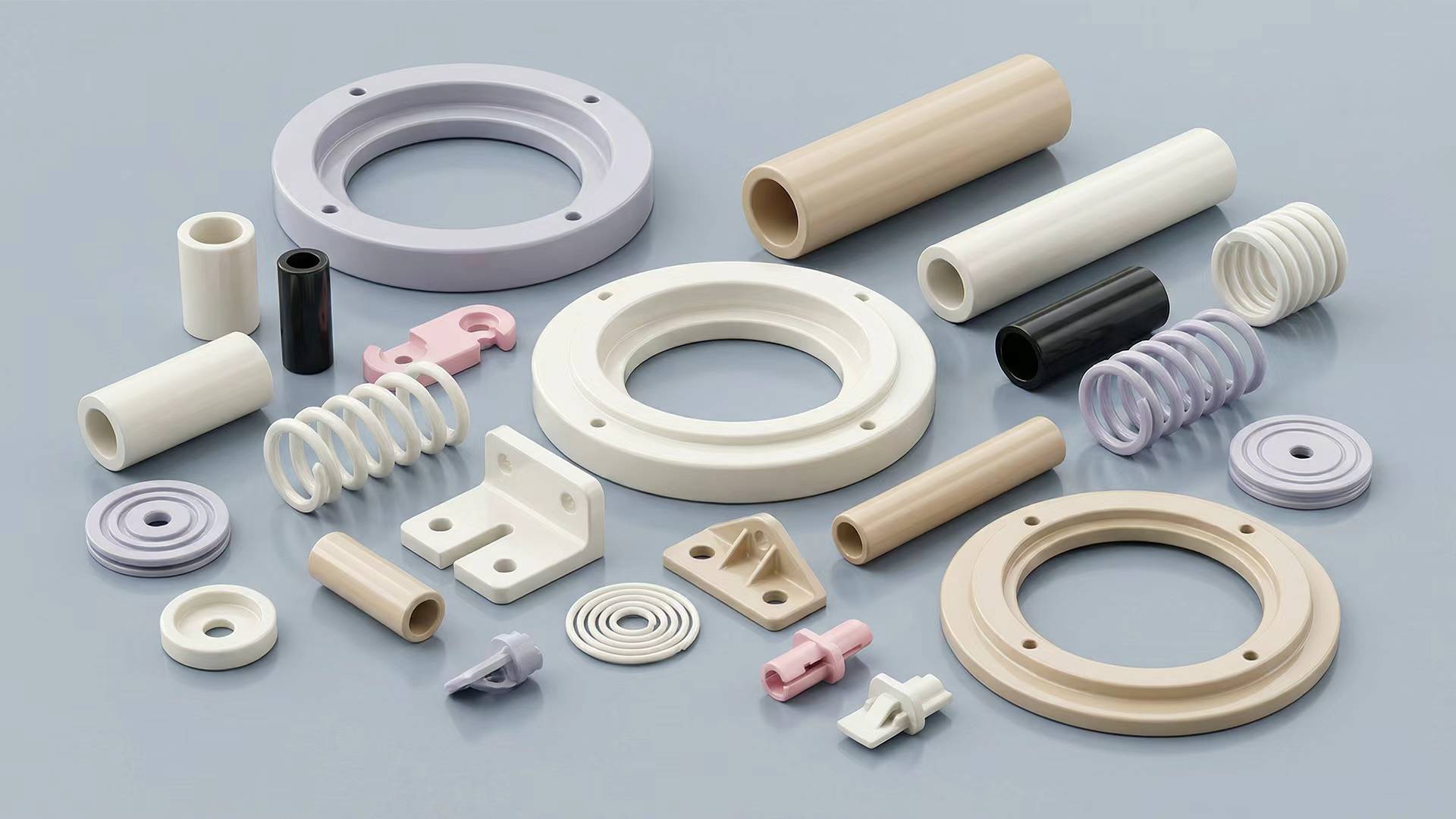

Ceramic Injection Molding (CIM) is an efficient manufacturing technology designed to mass produce precision ceramic parts with complex geometries. The process shares similarities with Metal Injection Molding (MIM) and includes five key stages: mixing, injection molding, debinding and sintering, and post-processing
CIM is widely valued for a variety of engineering applications due to its ability to utilize advanced ceramic materials such as alumina, zirconia, zirconia-toughened alumina (ZTA), and spinel. These materials offer exceptional properties, including chemical inertness, high temperature stability, wear resistance, and excellent electrical insulation. The combination of material versatility and manufacturing precision makes CIM ideal for applications that require durability and complex design features.

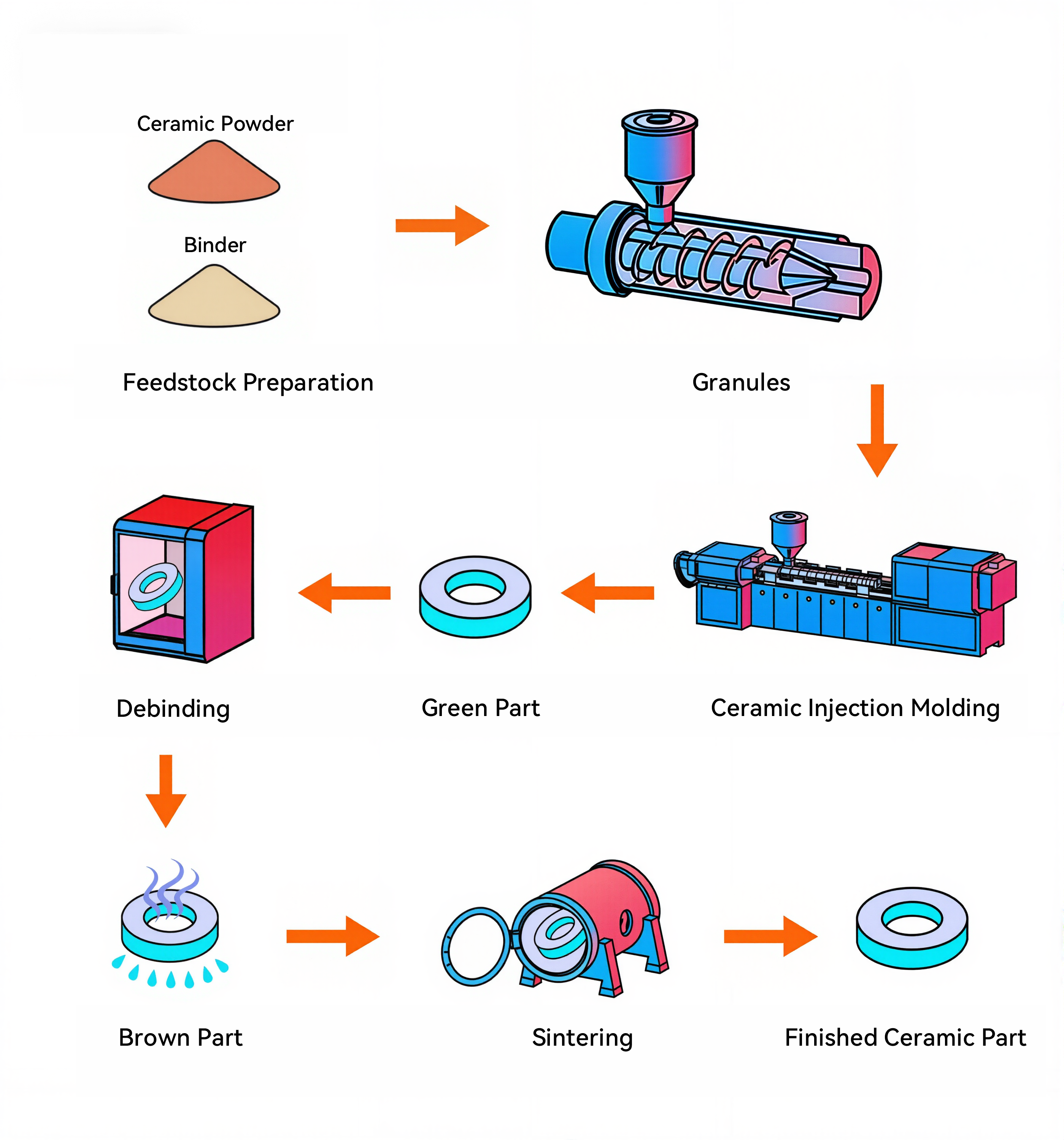

Ceramic Injection Molding (CIM) Detailed Process
Material Mixing
The first step of the CIM process is to mix the ceramic powder with a binder to form a uniform raw material (the most commonly used material is zirconium oxide). The raw material needs to have good fluidity for subsequent injection molding. The precise control of this step directly affects the uniformity and performance of the final product.
Injection Molding
The mixed ceramic powder metallurgy raw materials are injected into the mold to form the initial component, called the "green body". The green body is usually slightly larger than the final product to compensate for the inevitable shrinkage during the sintering process. Injection molding can efficiently produce parts with complex geometries, which is one of the core advantages of ceramic powder metallurgy technology.
Debinding
After molding, the plastic blank needs to be degreased to remove most of the binder in the raw material. This process produces an intermediate product called a "brown part". The brown part has the basic shape, but has lower strength and requires further processing to achieve final properties.
Sintering
Sintering is a key step in the ceramic powder metallurgy process. By heating the blank to a temperature close to the melting point of the metal, the residual binder is removed and the material is densified. The sintered parts are close to the final size and have the required physical properties and mechanical strength. This process determines the final density and geometric accuracy of the product.
Post Processing
After sintering, additional secondary processing can be performed according to the specific requirements of the ceramic product, such as sizing to ensure dimensional accuracy, heat treatment to improve mechanical properties, or surface coating to enhance corrosion resistance and appearance. These additional processes ensure that ceramic powder metallurgy parts can meet stringent application requirements.
Annual Parts Production
Custom Projects Completed
Product Qualification Rate
On-Time Delivery Rate
Advantages of CIM Technology
High Volume Production
Suitable for producing large numbers of parts quickly and efficiently.
Reduced Material Waste
Minimum material waste due to the precision of the process.
Complex Geometries
Ability to create parts with complex shapes that are difficult or impossible to create using traditional methods.
Superior Performance
Parts produced through CIM have superior mechanical properties and durability.
Medical Industry
Ceramics have many advantages that are helpful to the medical industry, such as inertness, non-toxicity, high hardness, high compressive strength, low friction coefficient, wear resistance, chemical resistance, sterility, can be made into parts with different porosity, high aesthetics and good durability.
The brittleness of ceramics has been reduced by introducing ceramic composites and nanostructured materials and through processing processes such as hot isostatic pressing. Ceramic coatings are also considered in cases where mechanical strength and toughness of the substrate are required.
Optical Industry
Ceramic powder metallurgy (CIM) technology also has a wide range of application potential in the field of optics. Similar to metal powder metallurgy, CIM is suitable for manufacturing optical structural parts or auxiliary parts, such as optical brackets, housings, and heat dissipation elements, but due to the characteristics of ceramic materials, it shows some unique advantages in the direct manufacturing of optical core components.
Ceramic materials such as zirconium oxide, aluminum oxide or silicon carbide are widely used in the manufacture of optical equipment due to their excellent wear resistance, corrosion resistance and high hardness. By selecting specific ceramic powders, such as magnesium oxide or aluminum nitride with excellent light transmittance, CIM technology can meet the requirements of optical equipment for lightweight, high strength and high chemical resistance.
Semicon Industry
Ceramic powder metallurgy (CIM) technology has unique advantages in the semiconductor field, especially for manufacturing small structural parts with complex shapes, such as brackets, fixtures and housings. These parts usually require high strength, high hardness and excellent corrosion resistance, while ceramic materials such as alumina and silicon nitride can provide excellent high temperature resistance and chemical stability. At the same time, the electrical insulation properties of ceramics make it an ideal choice for insulating parts (such as wire protection sleeves and bases), meeting the stringent requirements of semiconductor equipment for material performance.
The semiconductor industry has extremely strict requirements on the surface roughness of parts (usually Ra 0.1~0.2μm) to avoid particle contamination. CIM technology can achieve high dimensional accuracy through precision molding and sintering, but requires subsequent polishing or surface treatment to achieve ultra-low roughness. Although some costs may be increased, CIM is still cost-effective when mass-producing standardized parts, and is an ideal solution to meet the high performance and reliability requirements of semiconductor equipment.
3C Electronics Industry
The CIM process is very suitable for the manufacturing of small, complex and high-precision parts in the 3C electronics industry. It has significant advantages in mass production, lightweight and surface beauty, and is widely used in 3C products such as smartphones, smart wearable devices, and laptops. Card slots, buttons, brackets and other components.
However, parts with special performance requirements (such as high conductivity or extreme gloss) may need to be completed in combination with other processes.
Automotive Industry
Although CNC machining and die-casting still dominate the automotive industry, ceramic injection molding (CIM) processes often have advantages for many small and complex parts. For example, critical components such as valve guides, seals, insulators, sensor housings, and braking system components are more suitable for manufacturing through CIM processes to achieve lightweight, intricate geometries, and excellent thermal and mechanical properties.
The high efficiency and quality stability of the CIM process in mass production enable it to meet the automotive industry's stringent requirements for high precision, high strength, and wear resistance. With its flexibility to work with advanced ceramic materials and customized formulations, CIM provides manufacturers with greater design freedom, helping innovative components quickly pass the production part approval process (PPAP) and accelerate the development and launch of new automotive models.
Ceramic Injection Molding FAQ's
What is Ceramic Injection Molding (CIM)?
CIM is a manufacturing process that combines the versatility of plastic injection molding with the durability and performance of ceramic materials. It is used to produce small, complex, high-precision ceramic parts in large quantities.
What materials are used in CIM?
Common materials include:
- Alumina (Al₂O₃): Excellent hardness and wear resistance.
- Zirconia (ZrO₂): High strength, toughness, and thermal stability.
- Silicon Nitride (Si₃N₄): Exceptional mechanical properties and resistance to high temperatures.
- Aluminum Nitride (AlN): Superior thermal conductivity and electrical insulation.
What industries use CIM components?
CIM parts are widely used in:
- Medical: Surgical tools, implants, and dental components.
- Semiconductor: Insulators, fixtures, and precision housings.
- Optical: Lenses, precision brackets, and housings for optical systems.
- Automotive: Sensors, fuel injectors, and wear-resistant components.
- Consumer Electronics: Wearable device parts, optical components, and casings.
What tolerances can CIM achieve?
CIM can achieve tolerances as tight as ±0.05mm, depending on the material and part design.
How can I get started with CIM for my project?
Collaborate with a CIM manufacturer to assess feasibility, select materials, and design molds. A prototype phase can validate the design before scaling to mass production.
